J0408 Pointer DC Voltmeter 3V/15V Physical Electricity Experiment Voltmeter for School Laboratory

The Model J0408 DC Voltmeter is suitable for secondary school students. Used to measure the voltage in a DC circuit.

In addition to the voltmeter, we also provide ammeters and galvanometers.

✔ The indicator panel is at an angle of 45° to the horizontal

✔ Working temperature 0-40 ° C

✔ Measuring range (-1-0-3V) (-5-0-15V)

✔ Measurement accuracy: 2.5

✔ Damping time: ≤ 4 seconds

✔ The level of defense against the external magnetic field is level III

✔ The voltmeter head current is 1MV

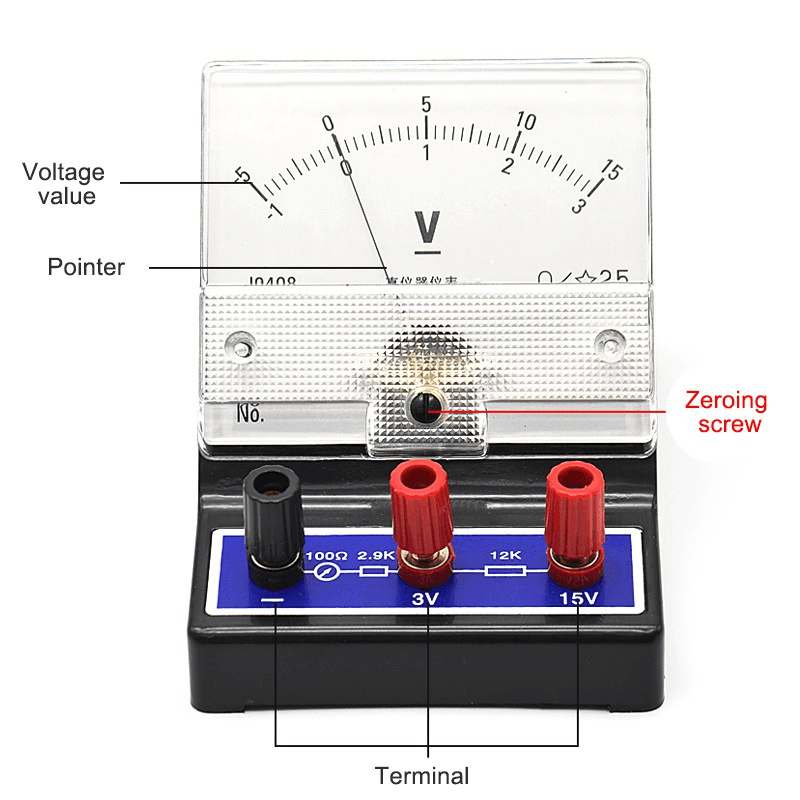

Check that the pointer is aligned to zero before use. If there is a deviation, turn the "return to zero screw" to adjust.
